Heyco® Glossy Plugs
Heyco® Glossy Plugs Underwriters Recognized under the Components Program of Underwriters' Laboratories File #E-15331
Canadian Standards Association Certified by Canadian Standards Association File #LR-8919
  • Closes unneeded chassis holes.
  • Smooth, glossy head provides easy glide and shiny finish.
  • Nine sizes for use in 1/4" (6,4mm) to 1" (25,4mm) diameter holes.
  • Locks firmly in chassis up to 1/8" (3,2mm) thick.
  • Quick and easy installation.
  • Molded of type 6/6 nylon.  ASTM D-4066;flammability classification 94V-2;temperature index 125°C.
Swipe

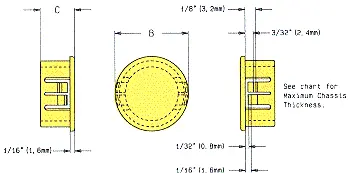

Chassis Dimensions Part No.   Part Dimensions
Maximum
Thickness 		Mounting
Hole
Diameter 		Black White Description B
Head
Diameter		 C
Overall
Height
in.       mm. in.       mm. in.        mm. in.        mm.
.062        1,6 .250            6,4 2600 2601 G-250 .312          7,9 .312            7,9
.062        1,6 .312           7,9 2610 2611 G-312 .375          9,5 .312            7,9
.125        3,2 .375           9,5 2620 2621 G-375 .468         11,9 .406          10,3
.125        3,2 .437         11,1 2630 2631 G-437 .531         13,5 .406          10,3
.125        3,2 .500         12,7 2640 2641 G-500 .578         14,7 .406          10,3
.125        3,2 .625         15,9 2660 2661 G-625 .718         18,2 .406          10,3
.125        3,2 .750         19,1 2680 2681 G-750 .843         21,4 .406          10,3
.125        3,2 .875         22,2 2700 2701 G-875 .953         24,2 .453          11,5
.125        3,2 1.000       25,4 2710 2711 G-1000 1.125       28,6 .453          11,5
.125        3,2 1.093-1.125 2720 2721 G-1093 1.218      30,9 .453          11,5
.125        3,2 1.187  30,1 2730 2731 G-1187 1.312      33,3 .453        11,5
Standard Color: Black.  White and others available at extra charge (only in large quantities).

Heyco® Glossy Plugs
Heyco Insulation Plugs
Heyco Insulation Plugs
  • Closes cavity-fill insulation holes in wood and other type siding.
  • Convex, matte finish head blends with siding.
  • Holds securely in hole.
  • Quick and easy installation with fingertip pressure (no tool required).
  • Molded of type 6/6 nylon.  ASTM D-4066; flammability classification 94V-2; temperature index 125°C.

Swipe
Chassis Dimensions Part No.   Part Dimensions
Maximum
Thickness		 Mounting
Hole
Diameter		 Black White Description B Head
Diameter		 C Overall
Height
in.       mm. in.       mm. in.        mm. in.        mm.
   No Max 1.000     25,4 3149 3150 IPW 1 1.234       31,3 .687         17,5
Standard Color: Black.  White and others available at extra charge (only in large quantities).

Heyco Insulation Plugs
