Heyco® Snap Bushings

Heyco Products
Bushings and Plugs
Snub/Open/Closed Bushings | Shorty Bushings | Heyco Snap Bushings | Snap Bushings | Universal/Armor Bushings | Halogen-Free Hole Plug | Threaded Insulating Bushings | Flexible Grommetting | Metric Dome Plugs/Snap Bushings |
Dome Plugs | Halogen-Free Hole Plugs | Shorty/Double "D" Plugs | Window Plugs | Pry Out Plugs | Vent Plugs |
Liquid Tight Knock-Out Seals | Glossy Plugs | Feets of Strength | Adhesive Backed Bumpers

Help me Choose  HELP ME CHOOSE

Heyco® Snap Bushings Heyco® Snap Bushings Underwriters Recognized under the Components Program of Underwriters' Laboratories File #E-15331
Canadian Standards Association Certified by Canadian Standards Association File #LR-8919

  • Converts raw-edged holes to smooth, neat, insulated holes.
  • Locking fingers "snap" into holes with fingertip pressure.
  • Withstands a push back force of 35 pounds.
  • Insulates and mechanically protects eletrical and telecommunications cables, tubing, hose, rope, and utility lines.
  • Avaialable in 58 sizes for use in 1/4" (6,4mm) and 6" (152,4mm) diameter holes.
  • We stock the following brass-colored parts for lamp and lighting applications: Part No. 2012, SB 312-3 Brass, Part No. 2003, SB 375-4 Brass, Part No. 2041, SB 437-4 Brass
5" and 6" bushings are now available!
Swipe

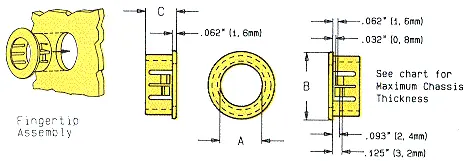

Chassis Dimensions Part No.   Part Dimensions
Maximum
Thickness		 Mounting
Hole
Diameter		 Black White UL/CSA
Description		 A
Inside
Diameter		 B
Head
Diameter		 C
Overall Height
in.        mm. in.        mm. in.        mm. in.        mm. in.      mm.
.125        3,2 .812      20,6 2100 2101 SB 812-9 .562     14,3 .890     22,6 .406   10,3
.125        3,2 .812      20,6 2103 2104 SB 812-10 .625     15,9 .890     22,6 .406   10,3
.125        3,2 .875      22,2 2110 2111 SB 875-6 .375       9,5 .953     24,2 .453   11,5
.125        3,2 .875      22,2 2113 2114 SB 875-7 .437      11,1 .953     24,2 .453   11,5
.125        3,2 .875      22,2 2116 2117 SB 875-8 .500      12,7 .953     24,2 .453   11,5
.125        3,2 .875      22,2 2120 2121 SB 875-9 .562      14,3 .953     24,2 .453   11,5
.125        3,2 .875      22,2 2123 2124 SB 875-10 .625      15,9 .953     24,2 .453   11,5
.125        3,2 .875      22,2 2126 2127 SB 875-11 .687      17,4 .953     24,2 .453   11,5
.125        3,2 1.000    25,4 2140 2141 SB 1000-12 .750      19,1 1.125   28,6 .453   11,5
.125        3,2 1.125    28,6 2160 2161 SB 1093-13 .812      20,6 1.218   30,9 .453   11,5
.125        3,2 1.125    28,6 2163 2164 SB 1093-14 .875      22,2 1.218   30,9 .453   11,5
.125        3,2 1.125    28,6 2166 2167 SB 1093-15 .937      23,8 1.218   30,9 .453   11,5
.125        3,2 1.187    30,1 2182 2183 SB 1187-15 .937      23,8 1.312   33,3 .453   11,5
.125        3,2 1.250    31,8 2198 2199 SB 1250-15 .937      23,8 1.359   34,5 .453   11,5
.125        3,2 1.250    31,8 2201 2202 SB 1250-16 1.000    25,4 1.310   33,2 .453   11,5
.125        3,2 1.375    34,9 2207 2208 SB 1375-14 .875      22,2 1.468   37,3 .453   11,5
.125        3,2 1.375    34,9 2210 2211 SB 1375-16 1.000    25,4 1.468   37,3 .453   11,5
.125        3,2 1.500    38,1 2233 2234 SB 1500-17 1.062    27,1 1.609   40,9 .453   11,5
.125        3,2 1.500    38,1 2236 2237 SB 1500-18 1.125    28,6 1.609   40,9 .453   11,5
.125        3,2 1.500    38,1 2240 2241 SB 1500-21 1.312    33,3 1.609   40,9 .453   11,5
.125        3,2 1.750    44,5 2300 2301 SB 1750-22 1.375    34,9 1.875   47,6 .453   11,5
.125        3,2 2.000    50,8 2400 2401 SB 2000-26 1.640    41,6 2.125   54,0 .453   11,5
.125        3,2 2.000    50,8 2406 - SB 2000-28 1.750    44,5 2.125   54,0 .453   11,5
.250      6,4 2.093   53,1 2415 2416 SB 2.093-29 1.813   46,0 2.35      59,7 .72    18,3
.250      6,4 2.250    57,2 2417 2418 SB 2.25-28 1.86      47,1 2.48      63,1 .72     18,3
.250      6,4 2.500    63,5 2420 2421 SB 2.5-31 1.97      50,0 2.66      67,5 .72     18,3
.250      6,4 3.000    76,2 2461 2462 SB 3.0-39 2.47      62,7 3.16      80,2 .72     18,3
.250      6,4 3.375  85,7 2407 2408 SB 3375-45 2.812     71,4 3.66     92,9 .72     18,3
.250      6,4 3.500    88,9 2470 2471 SB 3.5-47 2.94      74,7 3.66      93,0 .72     18,3
.250      6,4 4.000  101,6 2479 2480 SB 4.0-55 3.48      88,4 4.17     105,9 .72     18,3
.250      6,4 5.000  127,0 2409 2410 SB 5.0-70 4.375   113,8 5.219   132,6 .740    18,8
.250      6,4 6.000  152,4 2484 2485 SB 6.0-86 5.375   139,2 6.219   157,9 .740    18,8
Standard Color:  Black.  White and others available at extra charge (only in large quantities).
