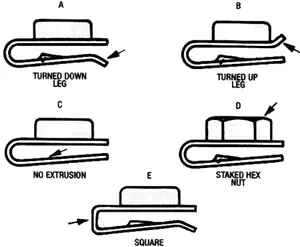

U-Type Nut Retainers U-Type Nut Retainers offer the same advantages as the J-Type Nut Retainers. That is, heavy-duty fastening, low fastener profile, "float" for hole misalignment, self-retention and blind location fastening. With the full-sized lower leg, the U-Type Nut Retainer is preferred where a full bearing surface between the panels is desired. They are applied simply and quickly in center, or end-panel locations requiring no special skills or equipment.

U-Type Nut Retainers

Material:
All parts are Spring Steel, heat treated, unless otherwise specified. The only variations available are those shown with suffix letters in the part number.

  • SS - Stainless Steel
  • BE - Beryllium Copper
  • P - Phosphor Bronze

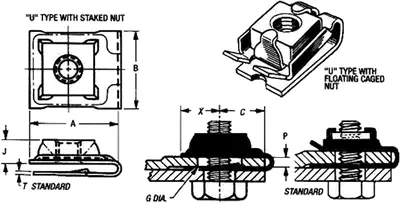

U-Type Nut Retainers The dimensions of the parts listed are envelope dimensions only. For complete design information, please contact us.

Metric parts listed in italic

How to apply U-Type Nut Retainers
Position the second panel and drive the screw. Both hands are free to align panels and complete the assembly. Flush mounting is attained by embossing either panel.

Push into bolt receiving position on panel until extrusion snaps into mounting hole. Access to the back of the panel is unnecessary as the nut retainer is self-retaining and the nut is trapped to prevent turning.

U-Type Nut Retainers can be installed in center-panel locations through a rectangular hole as illustrated here. They offer an ideal solution for blind fastening.

Swipe
  Part Number Screw Size Design P
Panel Min		 P
Panel Max		 A
Length		 B
Width		 C Max
Ctr Hold
to Edge		 X
Ctr to
End		 G
Panel
Hole
  C34121-M10 M10 x 1.50 U 4.25 5.00 34.50 24.00 16.90 17.60 14.00
  D99084-M8125 M8-1.25 U 14.50 15.00 29.50 16.00 19.50 8.00 10.90
  D98957-M8125 M8-1.25 U 3.00 3.00 35.80 25.00 19.00 16.80 14.05
  D98774-030M M8 x 1.25 U 3.20 3.70 29.50 21.05 14.50 15.00 11.00
  D99026-3816 3/8-16 U 14.50 15.50 29.50 16.00 19.50 21.50 10.90
  C30584-3816 3/8-16 J 4.83 5.33 38.86 22.73 22.86 12.83 14.27
  C30664-3816 3/8-16 J 2.74 3.25 39.62 22.73 22.86 12.83 15.88
  C31280-3816 3/8-16 J 2.36 5.16 38.10 19.05 19.05 11.18 11.10
  C33896-3816 3/8-16 J 2.29 3.56 26.29 19.05 12.70 11.68 12.80
  C33952-3816 3/8-16 J 1.27 2.29 26.67 19.05 13.87 11.68 12.80
  C33953-3816 3/8-16 J 3.23 4.14 25.40 19.05 12.70 10.67 11.10
  C34121-M10 M10 x 1.50 U 4.25 5.00 34.50 24.00 16.90 17.60 14.00
  LPGS085725 M8 x 1.25 U 1.50 5.50 24.89 17.02 13.00 10.41 11.70
  LPGS100033 M10-1.50 U 1.50 5.50 33.50 24.0 18.50 14.00 14.20
  LPGZ002264 M10-1.50 U 1.50 5.50 31.00 24.00 18.50 14.00 14.20
  LPGZ106033 M10 x 1.50 U 3.0 6.00 32.50 23.90 18.50 14.00
  LUGS080025 M8 x 1.25 U .80 4.00 24.89 17.02 13.00 10.41 11.70
  LUGS085725 M8 x 1.25 U 1.50 5.50 24.89 17.02 13.00 10.41 11.70
  LUGS085725 M10 x 1.50 U 1.50 5.50 32.50 17.50 18.50 14.00 14.20
  D98397S-M1015 M10 x 1.50 U 1.30 1.75 30.50 24.00 13.00 17.50 14.00
  LUGS381683 3/8-16 U 1.27 5.08 32.77 23.62 16.76 14.22 14.27
  D99177-M1015 M10 x 1.50 U 14.50 15.50 29.80 16.00 19.50 8.50 11.00
  D99131-157M M12 x 1.75 U 3.25 3.75 41.00 36.00 18.00 23.00 11.00
