Tinnerman® Tube, Harness & Hose Clamps

Tube Clamps

Tinnerman® Tube Clamps for mounting tube, conduit, cable, wire or other cylindrically shaped objects are available in a wide range of diameters. Standard sizes range from .062" to 2.000" diameters. Larger fastener sizes are available on special order. Made of top quality materials, Tinnerman Tube-Type Clamp fasteners provide strong, reliable retention and assure dimensional stability.

Available with dipped or extruded flame-resistant neoprene cushion to protect against abrasion or chafing, these fasteners can also be supplied with a self-retaining Speed Nut Fastener on one leg for easier, vibration-resistant installations. This feature offers a tremendous advantage in close quarters where loose or separate parts, such as nuts and lock washers, create excessive small parts handling and unnecessary delays.

Special fastener designs can be developed to meet special requirements.Special designs can be developed to meet special fastening requirements. Many examples of such are shown here and on the following pages.

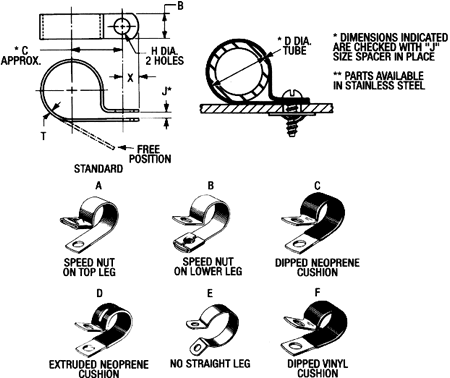

How to apply Tube-Type Clamp fasteners
The standard Tube-Type Clamp fastener is formed to allow application over its prescribed tube diameter at any desired location without undue distortion. Once positioned on the tube, the screw is driven and the clamp legs draw together for a tight assembly. The Speed Nut Fastener shown in place on this clamp reduces parts handling and accelerates assembly. Tinnerman Tube-Type Clamps are available with or without the fastener in place.
