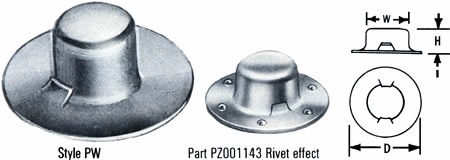

Palnut® Washer Cap Pushnut® Removable Type Fastener

[PW 188007]

Palnut® Washer Cap Pushnut® Fasteners

Non-Threaded Applications

The Dimensions of the following parts are envelope dimensions only. For complete design information, please request a blueprint from your Tinnerman Palnut representative or the Tinnerman Palnut Engineering Department.

*Recommended diameter tolerance of stud is +/- .002" and -.003". Surface hardness of stud must not exceed Rockwell
30T-78. Nickel-chrome plating or other hard finishes not recommended on steel studs.
Specifications
Material Spring Steel
Height (H) (In.) 0.202
Weight Lbs./M 1.1
Stud Diameter (In.) 3/16(.188)
Steel Thickness (In.) 0.015
Washer Diameter (D) (In.) 7/16
Cap Diameter (W) (In.) 0.22
Push-On Force (Lbs.) 30
Minimum Holding Strength (Lbs.) 220
