Palnut® Plastic Push-On Caps

[KPS 008215]

Palnut® Plastic Caps

Palnut offers a full range of plastic caps the user must evaluate the required performance characteristics required of the Plastic Cap and its dimensions

  • Maximum Push ON force
  • Minimum Holding Strength
  • Cap height
  • Cap Diameter

Available Colors

Select a color from the list below and add the code number to the end of
the KPS part you'd like to purchase

EW - White
ET - Beige
EB - Black
VU273 - Green (Pantone 356C)
ER - Red (Pantone 193C)
EQ - Special Red (Pantone 1795C)
VU451 - Malibu Pink (Pantone 238C)
ED - Cobalt Blue
EO - Ocean Blue (Pantone 2945C)
EY - Light Yellow (Pantone 3955C)
BY - Banana Yellow (Pantone 115C)
FY - Fluorescent Yellow
HG - Hunter Green (Pantone 3302)

Note: Pantone numbers are for reference only, not exact matches
Specifications
Material Nylon
Available Colors Beige|Green (Pantone #356C)|Black|Cobalt Blue|Malibu Pink (Panto

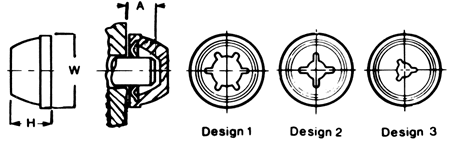

Stud, Rod, or Wire Diameter 8mm
Cap Outside Diameter (W) 21.2
Height Overall (H) 11.2
Minimum Shaft Extension (A) 4.4
Steel Thickness 0.38
Tooth Design 1
Maximum Push-On Force 267 N
Minimum Holding Strength 3115 N
0
