Male Ball Stud

Male Ball Studs are used in assemblies that require repeated disengagement.
When used in panel fastenings there is typically a female socket joint or receptacle that accepts the ball stud when pushed into place.
There is no direct contact between the ball stud and the panel surface, wear is eliminated.

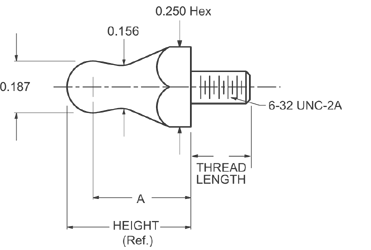

Male ball studs have external threading with a 3/16" diameter head, a 1/4" hexagonal base and 6-32 threads.

Please see Ball Stud Clips for more details about this important matching clips

Basic Part Number Height (Ref.) Thread Length Hex Width Height to
Center of Ball
("A") (±.005)		 Panel Thickness
(min/max)		 Body Diameter
(minor/major)
P116-421-05-3B 0.421 0.156 0.250 0.328 0.025/0.051 0.156/0.187
P116-421-06-3B 0.421 0.187 0.250 0.328 0.025/0.051 0.156/0.187
P116-421-07-3B 0.421 0.218 0.250 0.328 0.025/0.051 0.156/0.187
P116-421-08-3B 0.421 0.250 0.250 0.328 0.025/0.051 0.156/0.187
P116-421-10-3B 0.421 0.312 0.250 0.328 0.025/0.051 0.156/0.187
P116-421-12-3B 0.421 0.375 0.250 0.328 0.025/0.051 0.156/0.187
P116-421-14-3B 0.421 0.437 0.250 0.328 0.025/0.051 0.156/0.187
P116-421-16-3B 0.421 0.500 0.250 0.328 0.025/0.051 0.156/0.187
P116-421-18-3B 0.421 0.562 0.250 0.328 0.025/0.051 0.156/0.187
P116-421-20-3B 0.421 0.625 0.250 0.328 0.025/0.051 0.156/0.187
P116-447-05-3B 0.447 0.156 0.250 0.354 0.052/0.078 0.156/0.187
P116-447-06-3B 0.447 0.187 0.250 0.354 0.052/0.078 0.156/0.187
P116-447-07-3B 0.447 0.218 0.250 0.354 0.052/0.078 0.156/0.187
P116-447-08-3B 0.447 0.250 0.250 0.354 0.052/0.078 0.156/0.187
P116-447-10-3B 0.447 0.312 0.250 0.354 0.052/0.078 0.156/0.187
P116-447-12-3B 0.447 0.375 0.250 0.354 0.052/0.078 0.156/0.187
P116-447-14-3B 0.447 0.437 0.250 0.354 0.052/0.078 0.156/0.187
P116-447-16-3B 0.447 0.500 0.250 0.354 0.052/0.078 0.156/0.187
P116-447-18-3B 0.447 0.562 0.250 0.354 0.052/0.078 0.156/0.187
P116-447-20-3B 0.447 0.625 0.250 0.354 0.052/0.078 0.156/0.187
P116-473-05-3B 0.473 0.156 0.250 0.380 0.079/0.105 0.156/0.187
P116-473-06-3B 0.473 0.187 0.250 0.380 0.079/0.105 0.156/0.187
P116-473-07-3B 0.473 0.218 0.250 0.380 0.079/0.105 0.156/0.187
P116-473-08-3B 0.473 0.250 0.250 0.380 0.079/0.105 0.156/0.187
P116-473-10-3B 0.473 0.312 0.250 0.380 0.079/0.105 0.156/0.187
P116-473-12-3B 0.473 0.375 0.250 0.380 0.079/0.105 0.156/0.187
P116-473-14-3B 0.473 0.437 0.250 0.380 0.079/0.105 0.156/0.187
P116-473-16-3B 0.473 0.500 0.250 0.380 0.079/0.105 0.156/0.187
P116-473-18-3B 0.473 0.562 0.250 0.380 0.079/0.105 0.156/0.187
P116-473-20-3B 0.473 0.625 0.250 0.380 0.079/0.105 0.156/0.187
P116-499-05-3B 0.499 0.156 0.250 0.406 0.106/0.132 0.156/0.187
P116-499-06-3B 0.499 0.187 0.250 0.406 0.106/0.132 0.156/0.187
P116-499-07-3B 0.499 0.218 0.250 0.406 0.106/0.132 0.156/0.187
P116-499-08-3B 0.499 0.250 0.250 0.406 0.106/0.132 0.156/0.187
P116-499-10-3B 0.499 0.312 0.250 0.406 0.106/0.132 0.156/0.187
P116-499-12-3B 0.499 0.375 0.250 0.406 0.106/0.132 0.156/0.187
P116-499-14-3B 0.499 0.437 0.250 0.406 0.106/0.132 0.156/0.187
P116-499-16-3B 0.499 0.500 0.250 0.406 0.106/0.132 0.156/0.187
P116-499-18-3B 0.499 0.562 0.250 0.406 0.106/0.132 0.156/0.187
P116-499-20-3B 0.499 0.625 0.250 0.406 0.106/0.132 0.156/0.187
P116-525-05-3B 0.525 0.156 0.250 0.432 0.133/0.160 0.156/0.187
P116-525-06-3B 0.525 0.187 0.250 0.432 0.133/0.160 0.156/0.187
P116-525-07-3B 0.525 0.218 0.250 0.432 0.133/0.160 0.156/0.187
P116-525-08-3B 0.525 0.250 0.250 0.432 0.133/0.160 0.156/0.187
P116-525-10-3B 0.525 0.312 0.250 0.432 0.133/0.160 0.156/0.187
P116-525-12-3B 0.525 0.375 0.250 0.432 0.133/0.160 0.156/0.187
P116-525-14-3B 0.525 0.437 0.250 0.432 0.133/0.160 0.156/0.187
P116-525-16-3B 0.525 0.500 0.250 0.432 0.133/0.160 0.156/0.187
P116-525-18-3B 0.525 0.562 0.250 0.432 0.133/0.160 0.156/0.187
P116-525-20-3B 0.525 0.625 0.250 0.432 0.133/0.160 0.156/0.187
P116-570-05-3B 0.570 0.156 0.250 0.477 0.209/0.235 0.156/0.187
P116-570-06-3B 0.570 0.187 0.250 0.477 0.209/0.235 0.156/0.187
P116-570-07-3B 0.570 0.218 0.250 0.477 0.209/0.235 0.156/0.187
P116-570-08-3B 0.570 0.250 0.250 0.477 0.209/0.235 0.156/0.187
P116-570-10-3B 0.570 0.312 0.250 0.477 0.209/0.235 0.156/0.187
P116-570-12-3B 0.570 0.375 0.250 0.477 0.209/0.235 0.156/0.187
P116-570-14-3B 0.570 0.437 0.250 0.477 0.209/0.235 0.156/0.187
P116-570-16-3B 0.570 0.500 0.250 0.477 0.209/0.235 0.156/0.187
P116-570-18-3B 0.570 0.562 0.250 0.477 0.209/0.235 0.156/0.187
P116-570-20-3B 0.570 0.625 0.250 0.477 0.209/0.235 0.156/0.187
P116-625-05-3B 0.625 0.156 0.250 0.532 0.230/0.256 0.156/0.187
P116-625-06-3B 0.625 0.187 0.250 0.532 0.230/0.256 0.156/0.187
P116-625-07-3B 0.625 0.218 0.250 0.532 0.230/0.256 0.156/0.187
P116-625-08-3B 0.625 0.250 0.250 0.532 0.230/0.256 0.156/0.187
P116-625-10-3B 0.625 0.312 0.250 0.532 0.230/0.256 0.156/0.187
P116-625-12-3B 0.625 0.375 0.250 0.532 0.230/0.256 0.156/0.187
P116-625-14-3B 0.625 0.437 0.250 0.532 0.230/0.256 0.156/0.187
P116-625-16-3B 0.625 0.500 0.250 0.532 0.230/0.256 0.156/0.187
P116-625-18-3B 0.625 0.562 0.250 0.532 0.230/0.256 0.156/0.187
P116-625-20-3B 0.625 0.625 0.250 0.532 0.230/0.256 0.156/0.187

Part Number Example:
(Basic Part Number-Thread Length-Material Code-Finish Code)
P116-421-09-3B
Male Ball Stud, 0.421" Height, 1/4" Length (.250), Steel Clear Zinc
