Heyco® Screw to Tab Terminal Blocks Screw to (3) Tabs for Electrical Ranges

Heyco® Screw to Tab Terminal Blocks Screw to (3) Tabs for Electrical Ranges
  • Three .205" by .031" (6,3 by 0,8mm) tabs per pole.
  • ATB-3P poles are marked 1,2, and ground.
  • ATB-4P poles are marked 1,2,3, and ground.
  • ATB-6P poles are marked 1, 2, 3, 4, 5 and ground.
  • All nylon fastener sizes are rated at 600 volts (450 volts in Europe).
  • Self-grounding version is available. Indentical to the base parts except that an extension on the grounding pole makes direct contect with the chassis. The extension is secured with two self-tapping screws.
  • Molded of type 6/6 glass filled nylon. Self extinguishing. Flammability classification 94V-0; temperature index 150 degrees C.
  • Ground contact (Part No. 9457) - Grounds terminal block to the chassis. May be ordered separately or with the listed Appliance Terminal nylon fastener Blocks.
  • Jumper (Part No. 9456) - To connect termainal block poles. For use with Heyco's Screw to Tab terminal nylon fastener blocks.
  • Recognized under the Component Program of Underwriters' Laboratiries File #E-197025.

Swipe
Wire Size Amps
N. Am.		 Poles Part No. Desc. Screws
(mm)		 Part Dimensions

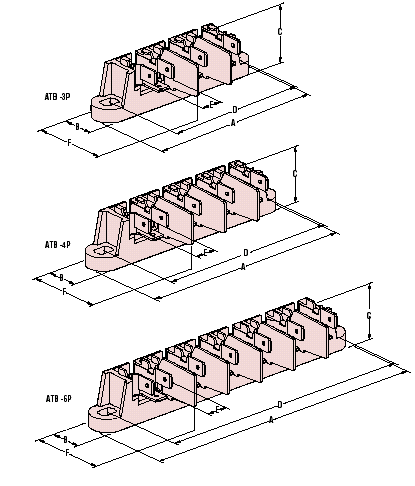

AWG MM2 Natural A B C D E F
in mm in mm in mm in mm in mm in mm
8-18 10 40 3 9450 ATB-3P FR M 5,0 3.19 81,0 .59 15,0 1.00 25,4 2.60 66,0 .41 10,4 1.48 37,5
8-18 10 40 3 9451 ATB-3P FR w/ ground M 5,0 3.19 81,0 .59 15,0 1.00 25,4 2.60 66,0 .41 10,4 1.48 37,5
8-18 10 40 4 9452 ATB-3P FR M 5,0 3.90 99,0 .59 15,0 1.00 25,4 3.31 84,0 .41 10,4 1.48 37,5
8-18 10 40 4 9453 ATB-3P FR w/ ground M 5,0 3.90 99,0 .59 15,0 1.00 25,4 3.31 84,0 .41 10,4 1.48 37,5
8-18 10 40 6 9454 ATB-3P FR M 5,0 5.31 135,0 .59 15,0 1.00 25,4 4.72 120,0 .41 10,4 1.48 37,5
8-18 10 40 6 9455 ATB-3P FR w/ ground M 5,0 5.31 135,0 .59 15,0 1.00 25,4 4.72 120,0 .41 10,4 1.48 37,5
  9456 Jumper for Screw to Tab Poles
  9457 Ground for Screw t oTab TB
Standard Color: Flame retardant brown.
