Heyco® Pigtail™ Strain Relief Bushings
Heyco® Pigtail™ Strain Relief Bushings Component Program of Underwriters Recognized under the Component Program of Underwriters' Laboratories File #E-15331
Canadian Standards Association Certified by Canadian Standards Association File #LR-8919

Swipe
UL TYPE
Designation		 AWG
Conductors		 Approx
Cable
Diameter		 A
Mounting
Hole		 B
To Prevent
Rotation		 Maximum
Thickness		 PART NO. UL/CSA
Desc		 C
Extension
Length		 D
Part
Length
in.   mm. in.    mm. in.   mm. in.    mm. Black in.    mm. in.    mm.
SV&SVT 18/2 .250 6,4 .500/12,7 .455/11,6 .125  3,2 1914 SR 5S-1 1.875/47,6 2.593/65,9
SV&SVT 18/3 .255 6,5 .515/13,1 .455/11,6 .125  3,2 SR 5S-1 1.875/47,6 2.593/65,9
HPD 18/2 .270 6,8 .500/12,7 .455/11,6 .125  3,2 SR 5S-1 1.875/47,6 2.593/65,9
HPD 16/2 .325 8,3 .625/15,9 .570/14,5 .125  3,2 SR 6S-2 1.812/46,0 2.640/67,0
HPD 18/3 .330 8,4 .625/15,9 .570/14,5 .125  3,2 SR 6S-2 1.812/46,0 2.640/67,0
HPD 16/3 .355 9,0 .625/15,9 .570/14,5 .125  3,2 SR 6S-2 1.812/46,0 2.640/67,0
METAL SPRING MUST BE ORDERED SEPARATELY, USE 1943
(Metallic)		 BRI Spring Part Dimensions
Above Include
Spring
1940
(Metallic)		 6006 5N
  Standard Fastener Color: Black

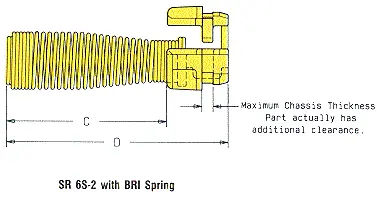

  • Strain Relief Part No. 1943, BRI Spring, may be used with SR 5S-1, and 6S-2.

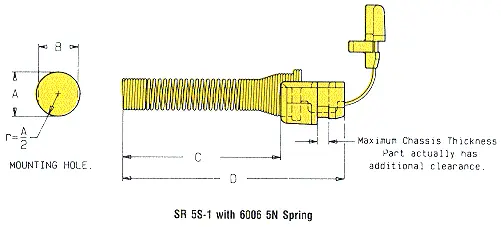

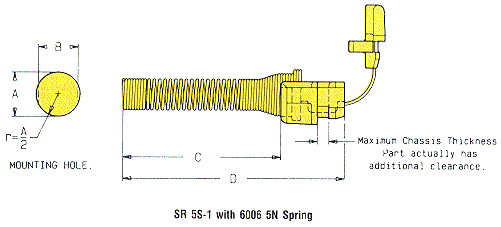

  • Part No. 1940, 6006 5N Spring is for use with SR 5S-1 only.
  • Each strain relief is available in high impact strength nylon; suitable for power tool applications.
  • Standardize panel design!  Fill unneeded SR mounting holes with Heyco Double D Nylon Fastener Plugs.
  • Molded of type 6/6 nylon.  ASTM D-4066; flammability classification 94V-2; temperature index 125°C. Maximum temperature on the nylon strain relief part shall not exceed 105°C.
    (Click here to see our guide on choosing the best strain relief for your application.)
