Heyco® Nytye® Mounting Platforms

Heyco Products
Wire Positioning
Cable Clamps | Lockit Loops | Adhesive Backed Extruded Wire Clips | Push Mount Wire Clips | Wire Clips "J" and "C" Style | Wire Clips "U" Style | Vinyl Wire Clips | Non-Locking Adhesive-Backed Clips/Flat Wire Clips | Wire & Cable Holders | Adhesive Backed Holders | Strap Mates | Value-Line Cable Ties | Nytyes Cable Ties | Beaded Ties | Nytye Mounting Platforms | Braided Sleeving | Cable Wrap | Labkits

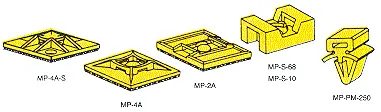

Heyco® Nytye® Mounting Platforms
Heyco® Nytye® Mounting Platforms Underwriters Recognized under the Component Program of Underwriters' Laboratories File #-54523

  • Six sizes anchor Nytyes securely.
  • Three styles:
    1)  Adhesive backed (may also be screw mounted, except MP-4A's)
    2)  Screw Mount
    3)  Push Mount
  • Acrylic adhesive.
  • Molded of type 6/6 nylon.  ASTM D-4066; flammability classification 94V-2.
  • Temperature rating 85C.
Swipe
Nytye
Insertion
Points		 Mounting
Style		 Part No. UL
Description		 Screw
Size		 Part
Dimensions		 Use Wth Nytyes
Maximum
Tensile
No.            M. in.              mm. Lb.               N.
4 Adhesive 3594 MP-4A-S 6          3,5 .750          19,0 18               80
2 Adhesive 3590 MP-2A 6          3,5 1.109        28,2 50              225
4 Adhesive 3593 MP-4A 6          3,5 1.140        29,0
2 Push
Mount		 3762 MP-PM-250 Mounts into
.250"(6,4mm)
Diameter hole.		 .375            9,5
   X              X
.625         13,6
2 Screw 3759 MP-S-68 6-8      3,5-4,0 .390            9,9
   X              X
.609         15,5
3753 MP-S-10 10 .625          15,9
   X              X
.875          22,2		 175           788
Standard Color:  Natural White

Heyco® Nytye® Mounting Platforms
Heyco® Nytye® Tensioning Tools
Heyco® Nytye® Tensioning Tools Heyco® Nytye® Tensioning Tools
  • Use Part No. 0999, the "Twist Trim Tool," for standard duty Nytyes.  Low cost, durable construction.  Tightens conventionally, then trims with a twist of the wrist.
  • Part No. 0998 fits all standard duty Nytyes.  Metal construction, has three tension settings and automatically trims excess.
