Heyco®Liquid Tight Straight-Thru Fittings For Flexible Cords
Heyco®Liquid Tight Straight-Thru Fittings For Flexible Cords


US PATENT No. 5,405,172 Foreign Patents
Underwriters Listed under Underwriters' Laboratories File  #E-51579
Components Program of Underwriters     Recognized under the Components Program of Underwriters' Laboratories File #E-51579
Canadian Standards Association CSA Certified by Canadian Standards Association File #LR-93876.

PG HUBS--Install in either clearance or threaded holes.


Swipe

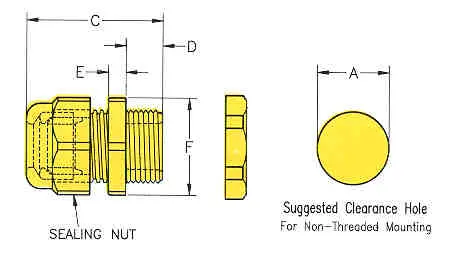

  A C D E F
  Part No. UL/CSA Clearance
Hole		 Max. O.A.
Length		 Thread Length Wrenching
Nut Thk.		 Wrenching
Flats
Min. Dia. Max. Dia. Black Gray   in.     mm in.     mm in.     mm in.     mm in.     mm
.064     1,6 .210   5,3 3444 3445 RLTF 7 .492  12,5 1.17  29,7 .33     8,4 .22      5,6 .59    15,0
.114     2,9 .250   6,4 3207 3208 LTF 7 .492  12,5 1.17  29,7 .33     8,4 .22      5,6 .59    15,0
.069     1,8 .187   4,7 3446 3447 RLTF 9 .599  15,2 1.30  33,0 .34     8,6 .20      5,1 .75    19,1
.181     4,6 .312   7,9 3210 3211 LTF 9 .599   15,2 1.30  33,0 .34     8,6 .20      5,1 .75    19,1
.069     1,8 .260   6,6 3448 3449 RLTF 11 .733  18,6 1.46  37,1 .39     9,9 .20      5,1 .86    21,8
.230     5,8 .395  10,0 3213 3214 LTF 11 .733   18,6 1.46  37,1 .39      9,9 .20      5,1 .86    21,8
.170     4,3 .470  11,9 3216 3217 LTF 13,5* .804  20,4 1.53  38,9 .41   10,4 .20      5,1 .95    24,1
.230     5,8 .546  13,9 3219 3220 LTF 16* .886  22,5 1.66  42,2 .45   11,4 .23      5,8 1.05  26,7
.250     6,4 .485  12,3 3454 3455 RLTF 21* 1.115/28,3 1.87  47,5 .52   13,2 .23      5,8 1.30  33,0
.450   11,4 .709  18,0 3222 3223 LTF 21 1.115/28,3 1.87  47,5 .52   13,2 .23      5,8 1.30  33,0
.590   15,0 1.000/25,4 3225 3226 LTF 29* 1.470/37,3 2.23  56,6 .59   15,0 .28      7,1 1.66  42,2
.787   20,0 1.020 26,0 M3206 - RLTF 36* 1.85   47,0 2.38  60,5 .50   12,7 .32      8,1 2.09  53,1
.866   22,0 1.260 32,0 M3204 - LTF 36* 1.85   47,0 2.38  60,5 .50   12,7 .32      8,1 2.09  53,1
.984   25,0 1.220 31,0 3218 - RLTF 42* 2.125/54,0 2.36  60,0 .51   13,0 .33      8,3 2.36  60,0
1.260 32,0 1.496 38,0 3212 - LTF 42* 2.125/54,0 2.36  60,0 .51   13,0 .33      8,3 2.36  60,0
1.142 29,0 1.378 35,0 3283 - RLTF 48* 2.335/59,3 2.40  61,0 .55   14,0 .33      8,3 2.56  65,0
1.45737,0 1.732 44,0 3281 - LTF 48* 2.335/59,3 2.40  61,0 .55   14,0 .33      8,3 2.56  65,0

Standard Colors:  Black or Gray.
  * Underwriters Listed under Underwriters' Laboratories
  • NEW! Acme threads on body prevent skipping; speed installation.
  • "PG" hub threads are steel conduit threads per DIN 40430.  For DIN 40430 see page 1-20.
  • Seventeen sizes for cable, tubing, etc. with diameters ranging from .064"(1.6mm) to 1.732"(44,0mm).
  • All nylon construction with TPE gland resists salt water, weak acids, gasoline, alcohol, oil,
    grease and common solvents.
  • Working temperatures:-22°F (-30°C) to 212°F (100°C). For short periods to 302°F (150°C).
  • Protection class IP 68 per DIN 40050 up to 70 psi (5 bar) water pressure.
  • Suitable for NEMA type 4 and 6 enclosures.
  • Locknuts are included.  For nylon locknut specifications or to order locknuts separately see page 1-13.
  • We recommend using the smallest maximum diameter fitting that will fit your application.
    Click here to see our guide on choosing the best LTF for your application.
    Click here for our Detailed Installation Instructions.
    Click here for Recommended Torque Chart.
