Heyco® Liquid Tight Pigtail™ Fittings For Flexible Cords
Heyco® Liquid Tight Pigtail™ Fittings For Flexible Cords US PATENT No. 5,405,172
Foreign Patents
Underwriters Listed under Underwriters' Laboratories File #E-51579
Components Program of Underwriters Recognized under the Components Program of Underwriters' Laboratories File #E-51579
Canadian Standards Association CSA Certified by Canadian Standards Association File #LR-93876.

Swipe

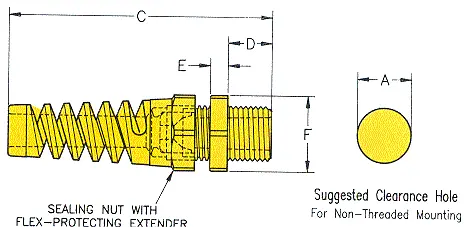

Part No.

  A C D E F
Min. Dia. Max. Dia. Black Gray UL/CSA Clearance
Hole		 Max.
O.A.
Length		 Thread Length Wrenching
Nut Thk.		 Wrenching
Flats
in.    mm in.    mm in.     mm. in.     mm. in.  mm. in.    mm. in.    mm.
.069   1,6 .187   4,7 3474 3475 FLEX RLTF 3/8 .670  17,0 2.97  75,4 .53  13,5 .20     5,1 .75    19,1
.181  4,6 .312   7,9 3254 3255 FLEX LTF 3/8 .670  17,0 2.97  75,4 .53   13,5 .20     5,1 .75    19,1
.170  4,3 .470 11,9 3251 3252 FLEX LTF 1/2* .875  22,2 4.09/103,9 .62   15,7 .20     5,1 .95    24,1
.230  5,8 .546 13,9 3266 3267 FLEX LLTF 1/2* .875  22,2 4.54/115,3 .62   15,7 .23     5,8 1.05  26,7
.250  6,4 .485 12,3 3462 3463 FLEX RLTF 3/4 1.068/27,1 5.14/130,6 .63   16,0 .23     5,8 1.30  33,0
.450 11,4 .709  18,0 3239 3242 FLEX LTF 3/4* 1.068/27,1 5.14/130,6 .63   16,0 .23     5,8 1.30  33,0

Standard Colors:  Black or Gray.  Locknut not included.
*  Underwriters Listed Under Underwriters' Laboratories
  • NEW!  Acme threads on body prevent skipping; speed installation.
  • Flexible "Pigtail" extender prevents sharp bends and extends cable life.
  • Ten sizes for cable, tubing, etc. with diameters ranging from .069" (1.8mm) to .709" (18,0mm).
  • All nylon construction with TPE gland resists salt water, weak acids, gasoline, alcohol, oil,
    grease and common solvents.
  • Working temperatures:-22°F (-30°C) to 212°F (100°C).  For short periods to 302°F (150°C).
  • Protection class IP 68 per DIN 40050 up to 70 psi (5 bar) water pressure.
  • Suitable for NEMA type 4 and 6 enclosures.
  • Locknuts are not included. To order nylon or steel locknuts separately, see page 1-13.
  • We recommend using the smallest maximum diameter fitting that will fit your application.
    Click here to see our guide on choosing the best LTF for your application
    Click here for our Detailed Installation Instructions
