Heyco™Liquid Tight Right Angle Cord Grips For Flexible Cords Heyco™Liquid Tight Right Angle Cord Grips For Flexible Cords
PG HUBS-Install in either clearance or threaded holes.

US and Foreign Patents Pending

Swipe

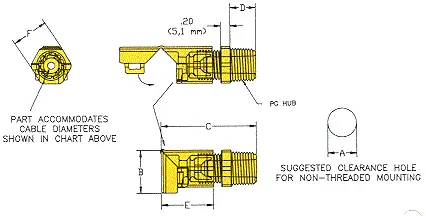

  A C E B D F
Cable Diameter Part No. Part No. UL/CSA
Description		 Clearance
Hole		 Max O.A.
Closed		 Sealing Nut
Length		 Right
Angle
Height		 Thread
Length		 Wrenching
Flats
Min  Dia Max Dia Black Gray
in.
mm.		 in.
mm.		 in.
mm.		 in.
mm.		 in.
 mm.		 in.
mm.		 in.
mm.		 in.
mm.
.064
1,6		 .210
5,3		 M8530 M8531 RLTF 7-90 .492
12,5		 1.53
38,8		 .86
21,8		 .69
17,5		 .33
8,4		 .59
15,0
.114
2,9		 .250
6,4		 M8532 M8533 LTF 7-90 .492
12,5		 1.53
38,8		 .86
21,8		 .69
17,5		 .33
8,4		 .59
15,0
.069
1,8		 .187
4,7		 M8534 M8535 RLTF 9-90 .599
15,2		 1.77
44,9		 1.07
27,1		 .88
22,3		 .34
8,6		 .75
19,1
.181
4,6		 .312
7,9		 M8536 M8537 LTF 9-90 .599
15,2		 1.77
44,9		 1.07
27,1		 .88
22,3		 .34
8,6		 .75
19,1
.078
2,0		 .260
6,6		 M8538 M8539 RLTF11-90 .733
18,6		 1.99
50,5		 1.23
31,2		 .99
25,1		 .39
9,9		 .86
21,8
.230
5,8		 .395
10,0		 M8540 M8541 LTF 11-90 .733
18,6		 1.99
50,5		 1.23
31,2		 .99
25,1		 .39
9,9		 .86
21,8
.170
4,3		 .470
11,9		 M8542 M8543 LTF 13-90 .804
20,4		 2.20
55,9		 1.38
35,1		 1.06
26,9		 .41
10,4		 .95
24,1

Standard nylon fastener colors: Black or Gray




  • Each nylon fastener fitting may be opened 90 degrees so that the cable can be inserted straight. After cable insertion, the cable nylon fastener fitting snaps closed, bending the cable without damage. This nylon fastener assembly method saves considerable time and money.
  • NEW! Acme threads on nylon fastener prevent skipping, speed installation.
  • "PG" hub nylon fastener threads are steel conduit nylon threads per DIN 404030.
  • Seven nylon fastener sizes for cable, nylon tubing, etc. with diameters ranging from .064"(1.6mm) to .470"(11.9mm)
  • We recommend using the smallest maximum diameter nylon fastener that will fit your application.
  • All nylon construction with TPE gland resists salt water, weak acids, gasoline, alcohol, oil, grease,and common solvents. Working temperature: -22°F(-30°C) to 212°F (100°C). For short periods to 302°F(150°C).
  • Protection class IP 68 per DIN 40050 up to 70 psi (5 bar) water pressure.
  • Locknuts are included.
Heyco™Liquid Tight Right Angle Cord Grips For Flexible Cords
