Heyco™ Liquid Tight Right Angle Cord Grips Heyco™ Liquid Tight Right Angle Cord Grips For Flexible Cords
NPT HUBS-Install in either clearance or threaded holes.

US and Foreign Patents Pending

Swipe

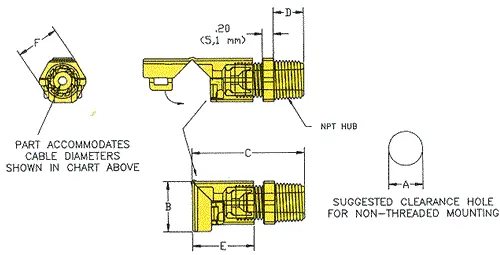

    Part No. Part No.   A C E B D F
Cable
Min  Dia		 Diameter
Max Dia		 UL/CSA Clearance Max o.a. lengt Sealing Nut Right
Angle		 Thread Wrenching
Black Gray Desc Hole Closed Length Height Length Flats
in.  mm. in.  mm.   in.
mm.		 in.
mm.		 in.
mm.		 in.
mm.		 in.
mm.		 in.
mm.
.069 1,8 .187  4,7 M8560 M8561 RLTF 3/8-90 .670
17,0		 1.97
50,0		 1.07
27,1		 .88
22,3		 .53
13,5		 .75
19,1
.181 4,6 .312   7,9 M8562 M8563 LTF 3/8-90 .670
17,0		 1.97
50,0		 1.07
27,1		 .88
22,3		 .53
13,5		 .75
19,1
.170 4,3 .470 11,9 M8564 M8565 LTF 1/2-90 .875
22,2		 2.41
61,2		 1.38
25,1		 1.06
26,9		 .62
15,7		 .95
24,1

Standard nylon colors: Black or Gray.

  • Each nylon fastener may be opened 90° so that the cable can be inserted straight. After cable insertion, the cable nylon fastener snaps closed, bending the cable without damage. This nylon fastener assembly method saves considerable time and money.
  • NEW! Acme threads on nylon fastener prevent skipping, speed installation.
  • Three nylon fastener sizes for cable, nylon tubing, etc. with diameters ranging from .069"(1.6mm) to .470"(11,9mm).
  • We recommend using the smallest maximum diameter nylon fastener that will fit your application.
  • All nylon construction with TPE gland resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. Working temperature: -22°F (-30°C) to 212°F (100°C). For short periods to 302°F (150°C).
  • Protection class IP 68 per DIN40050 up to 70 psi (5 bar) water pressure.
Heyco™ Liquid Tight Right Angle Cord Grips
