Heyco® Metal Cord Grip Fittings - Steel, For Flexible Cords
Heyco® Metal Cord Grip Fittings Underwriters Listed under Underwriters' Laboratories File #E-51579
Canadian Standard Association Certified by Canadian Standard Association File #LR-61799


Swipe

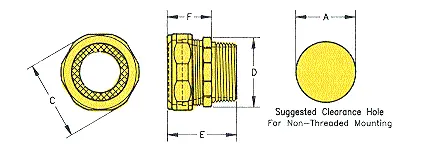

    Part No.     A C D E F
Min. Dia Max. Dia. UL/CSA
Description.		 NPT
HUB
SIZE		 Clearance
Hole		 Sealing Nut
Max. O.D.		 Body
O.D.		 Overall
Length		 Exposed
Length
in      mm in      mm in      mm in      mm in     mm in      mm in     mm
.15    3,8 .250   6,3 3800 CG 50A-250 1/2 .875     22,2 1.031  26,2 .937 23,8 1.312 33,3 .812 20,3
.25    6,3 .350   8,9 3801 CG 50A-350 1/2 .875     22,2 1.031  26,2 .937  23,8 1.312 33,3 .812 20,3
.35    8,9 .450 11,4 3802 CG 50A-450 1/2 .875     22,2 1.031  26,2 .937  23,8 1.312 33,3 .812 20,3
.45  11,4 .560 14,2 3803 CG 50A-560 1/2 .875     22,2 1.031  26,2 .937  23,8 1.312 33,3 .812 20,3
.55  14,0 .650 16,5 3804 CG 50A-650 1/2 .875     22,2 1.031  26,2 .937  23,8 1.312 33,3 .812 20,3
.15   3,8 .250   6,3 3806 CG 75A-250 3/4 1.109   28,2 1.031  26,2 1.187/30,2 1.312 33,3 .812 20,3
.25   6,3 .350   8,9 3807 CG 75A-350 3/4 1.109   28,2 1.031  26,2 1.187/30,2 1.312 33,3 .812 20,3
.350   8,9 .450 11,4 3809 CG 75A-450 3/4 1.109   28,2 1.031  26,2 1.187  30,2 1.312 33,3 .812 20,3
.450  11,4 .560 14,2 3810 CG 75A-560 3/4 1.109   28,2 1.031  26,2 1.187  30,2 1.312 33,3 .812 20,3
.550  14,0 .650 16,5 3811 CG 75A-650 3/4 1.109   28,2 1.031  26,2 1.187  30,2 1.312 33,3 .812 20,3
.650  16,5 .750 19,0 3812 CG 75B-750 3/4 1.109   28,2 1.250 31,7 1.187  30,2 1.562  39,7 1.031 26,2
.750  19,0 .850 21,6 3813 CG 75B-850 3/4 1.109   28,2 1.250 31,7 1.187  30,2 1.562  39,7 1.031 26,2

*  May vary slightly depending on cable diameter.
  • Exceeds UL pullout test requirements.
  • Twelve sizes, with 1/2" to 3/4" NPT hubs, cover a cable diameter range of .150"(3,8mm) to
    .850"(21,6mm).
  • Compact design allows fittings to be consecutively ganged - no skipping knockouts - and
    occupy less "real estate."
  • Color coded label system identifies the cord grips by wire range/grommet opening.
  • Neoprene rubber grommet ensures a permanent rain-tight seal around the cable.
  • Galvanized steel pressure ring prevents distortion of the grommet when the sealing
    nut is tightened.
  • Body and sealing nut are made of corrosion resistant machined steel.  Zinc plated with special
    brighteners for an attractive finish.
Heyco® Metal Cord Grip Fittings

Heyco® Metal Cord Grip Fittings - Zinc Die Cast, For Flexible Cords
  Heyco® Metal Cord Grip Fittings - Zinc Die Cast, For Flexible Cords Underwriters Listed under Underwriters' Laboratories File #E-51579
Canadian Standard Association Certified by Canadian Standard Association File #LR-18130


Swipe
Cable

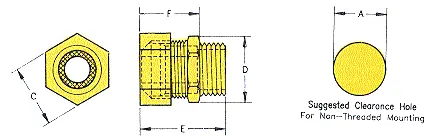

Range		 Diameter Part No.     A C D E F
Min. Dia.
in.     mm.		 Max. Dia.
in.    mm.		 UL/CSA NPT
HUB
SIZE		 Clearance
Hole
in.     mm.		 Sealing Nut
Max. O.D.
in.     mm.
Body O.D.
in.   mm.		 Overall Length
in.     mm.		 Exposed
Length*
in.     mm.
.190    4,8 .250   6,3 9776 CG 11 1/2 .875  22,2 1.00   25,4 .938 23,8 1.20    30,5 .80   20,3
.260    6,6 .375   9,5 9777 CG 12 1/2 .875    22,2 1.00   25,4 .938  23,8 1.20    30,5 .80   20,3
.375    9,5 .450  11,4 9778 CG 13 1/2 .875    22,2 1.00   25,4 .938  23,8 1.20    30,5 .80   20,3
.440  11,2 .560  14,2 9779 CG 21 3/4 1.109  28,2 1.218  30,9 1.187 30,2 1.27    32,3 .87   22,1
.500  12,7 .650  16,5 9780 CG 22 3/4 1.109  28,2 1.218  30,9 1.187 30,2 1.27    32,3 .87   22,1
.625  15,9 .725  18,4 9781 CG 23 3/4 1.109  28,2 1.218  30,9 1.187 30,2 1.27    32,3 .87   22,1

*  May vary slightly depending on cable diameter.
  • We recommend using the smallest maximum diameter range cord grip that will fit your application.
  • Cast from zinc alloy Zamac #3; ASTM B-86-83 SAE.
    Metal locknuts sold separately.
Heyco® Metal Cord Grip Fittings - Zinc Die Cast, For Flexible Cords
