Heyco-Flex™ III Halogen-Free 94V-0 Straight Nylon Connectors For Flexible, Nonmetallic Tubing
Heyco-Flex™ III Halogen-Free 94V-0 Straight Connectors For Flexible, Nonmetallic Tubing US PATENT No. 5,346,264
Foreign Patents
Underwriters     Recognized under the Components Program of Underwriters' Laboratories File #E121095
Canadian Standards Association CSA Certified by Canadian Standards Association File #LR-84579.

Swipe
Part No. Body and Sealing Nut Locking Nut
A C D E F G H
Fits
Conduit
Trade
Size 		UL/CSA
Description		 Thread Size Clearance
Hole		 Max
O.A.
Length		 Thread
Length		 Wrench
Nut Thk.		 Wrench
Flats		 Thick. Wrench
Flats		 Sealing
Washer
Part No.
        in.
mm		 in.
mm		 in.
mm		 in.
mm		 in.
mm.		 in.
mm.
1/4 HF3C 1/4-PG7 ** 94V-0 PG7 3/8 .492
12.5		 1.54
39.1		 .45
11.4		 .20
5.1		 .75
19.1		 .22
5.5		 .75
19.1		 1983
3/8 HF3C 3/8 94V-0 1/2NPT .875
22.3		 1.72
43.7		 .63
16.0		 .20
5.1		 1.18
30.0		 .27
6.8		 1.08
27.4		 1995
1/2 HF3C 1/2 94V-0
3/4 HF3C 3/4 94V-0 3/4NPT 1.109
28.2		 1.84
46.7		 .63
16.0		 .20
5.1		 1.37
34.8		 .27
6.8		 1.312
33.3		 1996
1 HF3C 1 94V-0 1NPT 1.375
35.0		 1.99
50.5		 .78
19.8		 .20
5.1		 1.63
41.4		 .27
6.8		 1.62
41.3		 1997
  • Five nylon fastener sizes for 1/4" thru 1".
  • Easy, permanent nylon fastener assembly: the installer pushes the tubing over the ferrule, until the nylon tubing "clicks" into place.
  • Straight nylon fastener for use in both wet and dry locations.
  • Low profile--discrete and clean nylon fastener appearance.
  • Locknuts included with Straight nylon connectors.
  • For lowest installed cost, the 1/2" size is also available with a snap-in hub (see below). Please consult Heyco for 1/4, 3/8, 3/4 and 1" Snap-In versions.
  • Use of an O-ring may be required for a complete liquid tight system.
  • Cost effective, light weight nylon construction resists salt water, weak acids, gasoline, alcohol, oil, grease and common solvents.
  • Rated 94V-0 to 1/64 of an inch.
  • Nylon fasteners are molded of type 6/6 nylon. ASTM D-4066-PA 111. Temperature index 75°C.

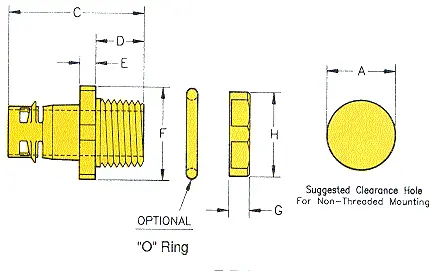

Heyco-Flex™ III Halogen-Free 94V-0 Straight Connectors For Flexible, Nonmetallic Tubing

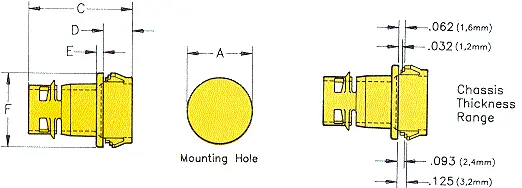

Heyco-Flex™ III Halogen-Free 94V-O Snap-In Connectors Heyco-Flex™ III Halogen-Free 94V-O Snap-In Connectors
For Flexible, Nonmetallic Tubing

Swipe
Fits Conduit
Tubing
Trade Size		 Part No. UL/CSA
Description		 A
Mounting Hole Dia.
in.     mm.		 C
Max. O. A.
Length
in.       mm.		 D
Body
Length
in.    mm.		 E
Head
Thickness
in.     mm.		 F
Head
Diameter
in.       mm.
1/2 9132 HF3C 1/2 S 94V-0 .875     22,3 1.380    35,1 .390     9,9 .09       2,3 .97     24,6

Dry Locations Only
Heyco-Flex™ III Halogen-Free 94V-O Snap-In Connectors
