Heyco® North American Receptacle Outlets, V-Sloted Terminals

Heyco® North American Receptacle Outlets

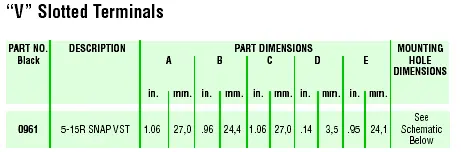

M2-9A.50
Standard Color: Black

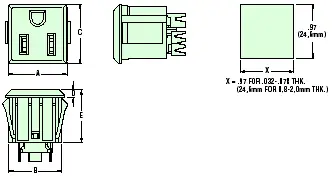

Heyco® North American Receptacle Outlets

• Snap-in, NEMA 5-15R receptacle.
• Three wire grounding, all sizes rated at 15 Amps/125 Volts.
• Receptacle installs on computers or test equipment to allow for accessory connections.
• Connections are made via "V" slotted terminals.
• Molded of type 6/6 nylon. Flammability classification 94V-0; temperature index 65°C.
• UL and CSA Approved.
