Cordset Components and Precision Metal Stampings: Chassis Fasteners

Heyco® Multi-Lockit™ Nylon Strain Relief Bushings


Heyco®Multi-Lockit™ Strain Relief Bushings Underwriters Recognized under the Component Program of Underwriters' Laboratories File #E-15331.
Canadian Standard Association Certified by Canadian Standard Association File #LR-8919

  • Nylon fasteners are assembly friendly, independent of insertion into the chassis. Lockit nylon strain reliefs and chassis fasteners self-lock onto the cable.  Thus, they may be pre-assembled off-line for final nylon fastener assembly at a later time or remote location, for a lower installed cost!  Large mounting hole design allows passage of nylon fastener plugs or bulky assemblies during Lockit installation.
  • Nylon chassis fasteners protect the lifeline of your electric/electronic products by absorbing the forces of push and pull that may be exerted on the flexible power cord.  Their rectangular design eliminates the possibility of part rotation under forces of twist!
  • Eight finger design securely locks into .032" chassis thickness.
  • Finger-tip pressure snaps the Lockit chassis fasteners into the mounting hole.
  • Molded of type 6/6 nylon.  ASTM D-4066; flammability classification 94V-2; temperature index 125°C. Maximum temperature on the part shall not exceed 105°C.

Lockit Nylon Strain Relief Bushings for Round and Flat Cables

FOR ROUND AND FLAT CABLES
Swipe

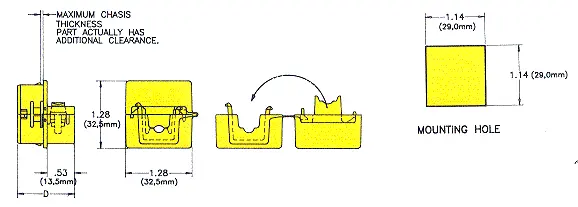

Will Fit These Cables Chassis Dimensions Part No. UL/CSA
Description		 D
Body
Length
UL
TYPE
Designation		 AWG/
Conductors		 Approximate
Size		 Mounting/
Chassis
Size 		Thickness Black
in.            mm. in.         mm. in.         mm.
Round
Cable
SVT		 18/3 .250          6,4 1.14     29,0
   x          x
1.14     29,0		 .032        8,0 1843 LSR1939-300 1.10   27,9
Flat Cable
SPT-3		 18/3 .173       4,39
   x            x
.380        9,65		 1.14      29,0
   x           x
1.14      29,0		 .032        8,0
Standard Color: Black

Heyco®Multi-Lockit™ Strain Relief Bushings

Heyco® Nylon Strain Relief Pre-Assembly Equipment

Part No. OST3 (Autolock 100)

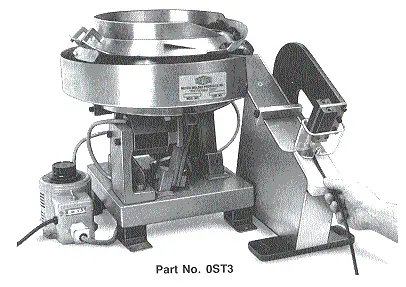

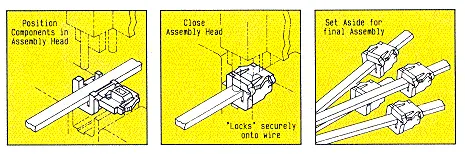

Semi-automatic assembly machine for ST100 and 101 Lockit nylon strain reliefs. Suitable for high volume production runs, where batched subassemblies are desirable. Includes vibratory feed bowl, track and head. The operator simply inserts the cable into the assembly head slot, then presses the foot pedal to secure Lockit chassis fastener permanently onto the wire. These nylon strain relief subassemblies can be installed with fingertip pressure into the application's mounting hole - at a later time, in a different place, for a lower installed cost! (Consult Heyco for availability of other assembly equipment).

Reduce carpal tunnel syndrome!

Heyco®Multi-Lockit™ Strain Relief Bushings
Heyco®Multi-Lockit™ Strain Relief Bushings
