Metric Rivet Plugs


EIS-RS Metric Series Sealing Plug - Rivet Plugs
Sleeve: Case Hardening Steel, Black Oxide Finish
Mandrel: Heat Treatable Steel, Black Oxide Finish

STANDARD LENGTH
(Dimensions in mm unless otherwise specified)

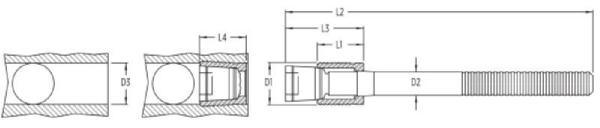

D1 L1 D2 L2 L3 max. L4 max. D3 +0,12
-0.0		 EIS P/N
4.0 4.5 2.50 39 9.0 6.5 4.0 EIS-RS-040
5.0 5.5 3.00 41 10.0 7.5 5.0 EIS-RS-050
6.0 6.5 3.40 43 12.0 8.0 6.0 EIS-RS-060
7.0 7.5 4.10 38 14.0 9.0 7.0 EIS-RS-070
8.0 8.5 4.20 40 15.0 10.5 8.0 EIS-RS-080
9.0 9.5 4.50 43 17.0 11.0 9.0 EIS-RS-090
10.0 10.5 4.75 45 19.0 12.5 10.0 EIS-RS-100


LONG LENGTH
(Dimensions in mm unless otherwise specified)
